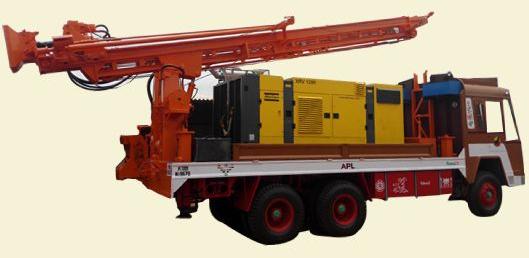

DTH Drilling Rigs

MOQ : 1 Piece

Business Type : Manufacturer, Exporter, Supplier

Product Details

Capacity : DTH - DTH - 1000
Drill Size Min. - Max : 8 to 10 Inch
Max. Depth : 300 mtr
Pull Down : 6000 Kgf
Pull Back : 10200 Kgf
Hoisting Speed : 45 mtr/min
Rotary Head Drive Length : 6950mm
Centric Opening : 270mm
Compressor : 1100 CFM/300 PSI
Max Pressure : 250 Kgf/cm2
Capacity : 550 Ltr
Road handling Capacity : Up to 6 mtr
Road head Torque/Rotation Speed : 280 Kg-m,0-100 Rpm
Pump Flow Pressure : 40 kg/cm
Water Injection : 50 Ltr / Min

Preferred Buyer From

Location All Countries Except India

Yes! I am interested


MOQ : 1 Piece

Business Type : Manufacturer, Exporter, Supplier

Product Details

Capacity 550 Ltr
Drill Size Min. - Max 8 to 10 Inch
Max. Depth 450 mtr
Pull Down 6900 Kgf
Pull Back 14100 Kgf
Hoisting Speed 35 mtr/min
Mast Length 8620mm
Rotary Head Drive Length 6950mm
Centric Opening 270mm
Compressor 1100 CFM/300 PSI
Max Pressure 250 Kgf/cm2
Prime Mover Rated Capacity 98ps@1500 Rpm
Carrier Wt 163psi@2600 Rpm
Road handling Capacity Up to 6 mtr
Road head Torque/Rotation Speed 280 Kg-m,0-100 Rpm
Water Injection 50 Ltr / Min
Pump Flow Pressure 40 kg/cm
MRC 100x800 - 1 No

Preferred Buyer From

Location All Countries Except India

Yes! I am interested


MOQ : 1 Piece

Business Type : Manufacturer, Exporter, Supplier

Product Details

Capacity DTH - 2000
Drill Size Min. - Max 8 to 11 Inch
Max. Depth 600 mtr
Pull Down 11200 Kgf
Pull Back 18400 Kgf
Hoisting Speed 27mtr/min
Mast Length 8620mm
Rotary Head Drive Length 6950mm
Prime Mover Rated Capacity 98ps@1500 Rpm
Carrier Wt. 163psi@2600 Rpm
Road handling Capacity Up to 6 mtr
Road head Torque/Rotation Speed 300 Kg-m,0-90 Rpm
Water Injection 50 Ltr / Min
Pump Flow Pressure 40 kg/cm
MRC 100x800 - 2 No

Preferred Buyer From

Location All Countries Except India

Yes! I am interested
