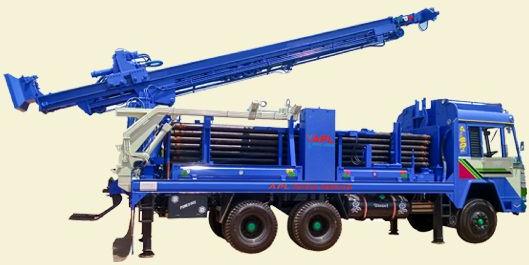

Leading Manufacturers, Exporters, Wholesaler and Retailer of APL DTH 660 Auto Loader, DTH 1000 DTH Auto Loader, DTH 1500 DTH Auto Loader and DTH 2000 DTH Auto Loader from Namakkal.
MOQ : 1 Piece
Business Type | Manufacturer, Exporter, Supplier |
Application | 6 1/2" to 10 1/2" Borehole to a Depth of 200 Mtr (660 Ft) |
Prime Mover | Truck Mounted Rig with Power from Truck Engine Through Pto Gear Box |
Mast Chennal | Ype Structure Maximum Capacity 30 Tons (67200 Ibs) Height 9 Nib. (29.5 Ft) Rod Handling Capacity 6.1 |
Drill Rod Diameter | 108 Mm — 114 Mm |
Max.pull Up Force | 13500 Kgs (29762 Lbs) |
Max.pull Up Speed | 30.5 Mtr/min (98 Ft/min) |
Max Pull Down Force | 9000 Kgs (19841 Ibs) |
Max Pull Down Speed | 45 Mtr/min (147 Ft/min) |
Feed System | Hydraulic Cylinder Driven Steel Rope & Pully System |
Hydraulic System | 210 Kg/cm2 (3000 Psi) |
Hydraulic Oil Volume | 170 Gallon (640liters) |
Hydraulic Oil Cooler | 130 Lpm Fin Type Cooler |
Main Pump Flow | 230 Lpm (61 Gallon) |
rotary Head | Rotary Head is Powered By One Hydraulic Motor |
Rotary Head | Rotary Head is Powered By One Hydraulic Motor Max. Torque 3.8 Kn |
Winch | Lifting Load Capacity 750 Kgs |
Water Injection Pump | Triplex Reciprocating Pump Powered By Hydraulic Motor |
Operating Panel | Attached with Corner of the Truck |
Guide Bed Diameter | 267 Mm (10 1/2") |
Rod Box Storage | 33 Rod (20 Feet Length) |
Auto Rod Changer | Auto Rod Changing System to Handle 6.1 Mtr Double Catcher Rod Clamping System Cylinder and 1 Arm to |
Water Tank Capacity | 260 Gallon |
Diesel Tank | 344 Gallon (compressor and Truck) |
Optional Attachment | Mud Pump, Welding Set, Flusing Tank & Hammer Opener |
Preferred Buyer From
Location | All Countries Except India |
MOQ : 1 Piece
Business Type | Manufacturer, Exporter, Supplier |
Pump Flow Pressure | 40 kg/cm |
Water Injection | 50 Ltr / Min |
Road head Torque/Rotation Speed | 300 Kg-m,0-90 Rpm |
Rod Handling Capacity | Up to 6 mtr |
Carrier Wt | 163psi@2600 Rpm |
Prime Mover Rated Capacity | 98ps@1500 Rpm |
Max Pressure | 250 Kgf/cm2 |
Capacity | 550 Ltr |
Compressor | 1100 CFM/300 PSI |
Centric Opening | 311mm |
Rotary Head Drive | 6950mm |
Mast Length | 8620mm |
Hoisting Speed | 27mtr/min |
Pull Back | 18400 Kgf |
Pull Down | 11200 Kgf |
Max. Depth | 600 mtr |
DTH Drill Size Min. - Max | 8X10 Inch |
MRC | 100x800 - 1 No |
Preferred Buyer From
Location | All Countries Except India |
MOQ : 1 Piece
Business Type | Manufacturer, Exporter, Supplier |
Capacity | 550 Ltr |
DTH Drill Size Min. - Max | 8" to 10" |
Max. Depth | 450 mtr |
Pull Down | 6900 Kgf |
Pull Back | 14100 Kgf |
Hoisting Speed | 35 mtr/min |
Mast Length | 8620mm |
Rotary Head Drive | 6950mm |
Centric Opening | 270mm |
Compressor | 1100 CFM/300 PSI |
Max Pressure | 250 Kgf/cm2 |
Prime Mover Rated Capacity | 98ps@1500 Rpm |
Carrier Wt | 163psi@2600 Rpm |
Rod Handling Capacity | Up to 6 mtr |
Road head Torque/Rotation Speed | 280 Kg-m,0-100 Rpm |
Water Injection | 50 Ltr / Min |
Pump Flow Pressure | 40 kg/cm |
MRC | 100x800 - 1 No |
Preferred Buyer From
Location | All Countries Except India |
MOQ : 1 Piece
Business Type | Manufacturer, Exporter, Supplier |
Capacity | 550 Ltr |
DTH Drill Size Min. - Max | 8" to 11" |
Max. Depth | 600 mtr |
Pull Down | 11200 Kgf |
Pull Back | 18400 Kgf |
Hoisting Speed | 27mtr/min |
Mast Length | 8620mm |
Rotary Head Drive | 6950mm |
Centric Opening | 311mm |
Compressor | 1100 CFM/300 PSI |
Max Pressure | 275 Kgf/cm2 |
Prime Mover Rated Capacity | 98ps@1500 Rpm |
Carrier Wt | 163psi@2600 Rpm |
Rod Handling Capacity | Up to 6 mtr |
Road head Torque/Rotation Speed | 300 Kg-m,0-90 Rpm |
Water Injection | 50 Ltr / Min |
Pump Flow Pressure | 40 kg/cm |
MRC | 100x800 - 2 No. |
